Garment From CAD File

Overview & Supported Outputs

Garments available in the supported CAD formats:

• CLO3D

• Browzwear (experimental)

…can be imported into the Pictofit Content Service to be transformed into real-time capable assets. These assets can be used for virtual try-on and virtual photography (as a Garment 2D or Garment 3D asset, see Input Specifications) or presented standalone as a single 3D object (Garment 3D asset). Depending on the provided data, size recommendation & visualization can be enabled as well.

Requirements

The following sections describe the requirements for the input data to ensure a high level quality. Violating these requirements might mean that we can’t process the request or have to deliver lower quality results.

In any case the garment needs to be properly 3D fitted and simulated on an avatar in A-pose with high quality digital fabrics/materials.

Garment 2D Output

Assets of type Garment 2D can be used for virtual photography and virtual try-on in a particularly scaleable manner.

Input Image Requirements

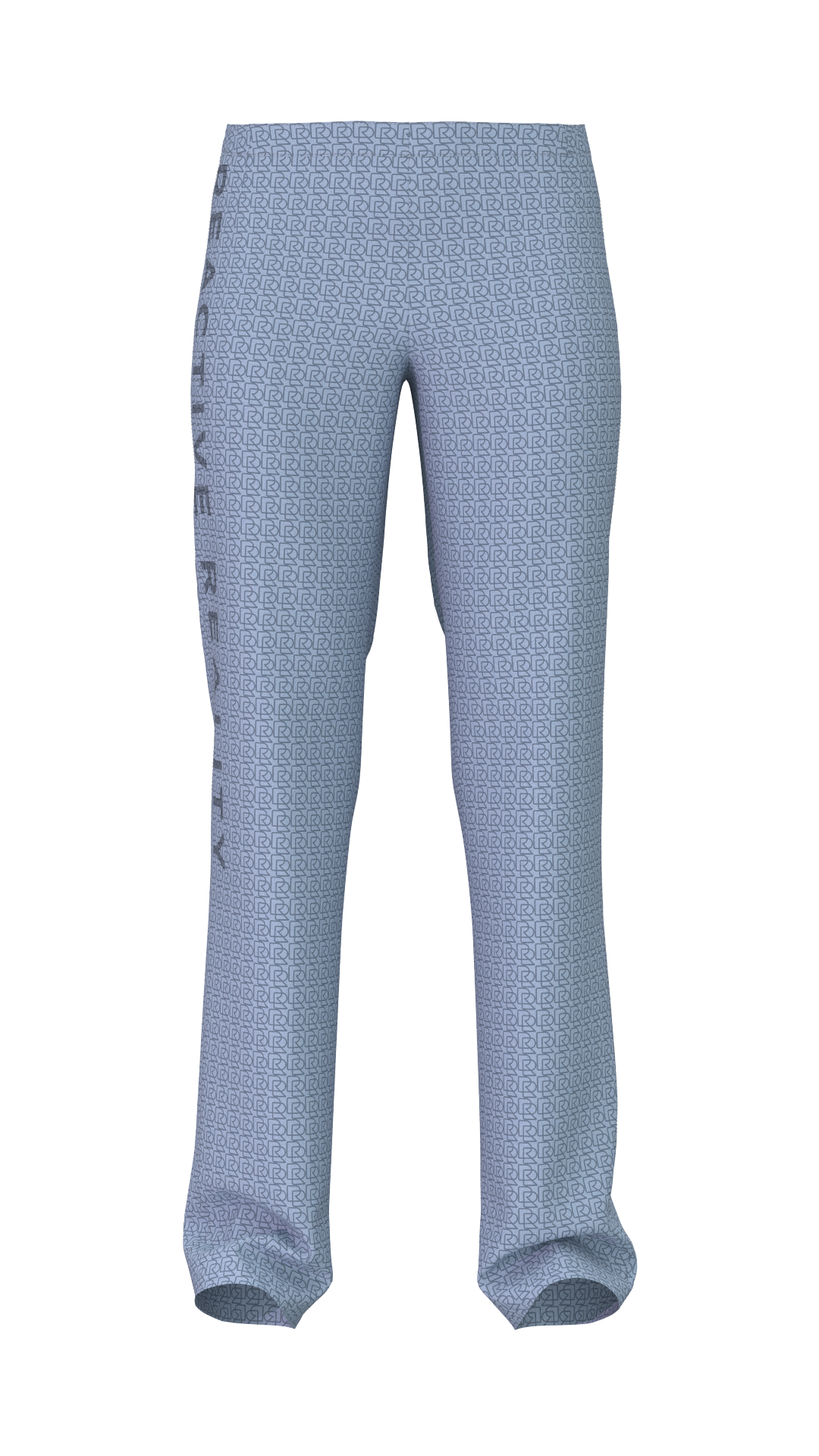

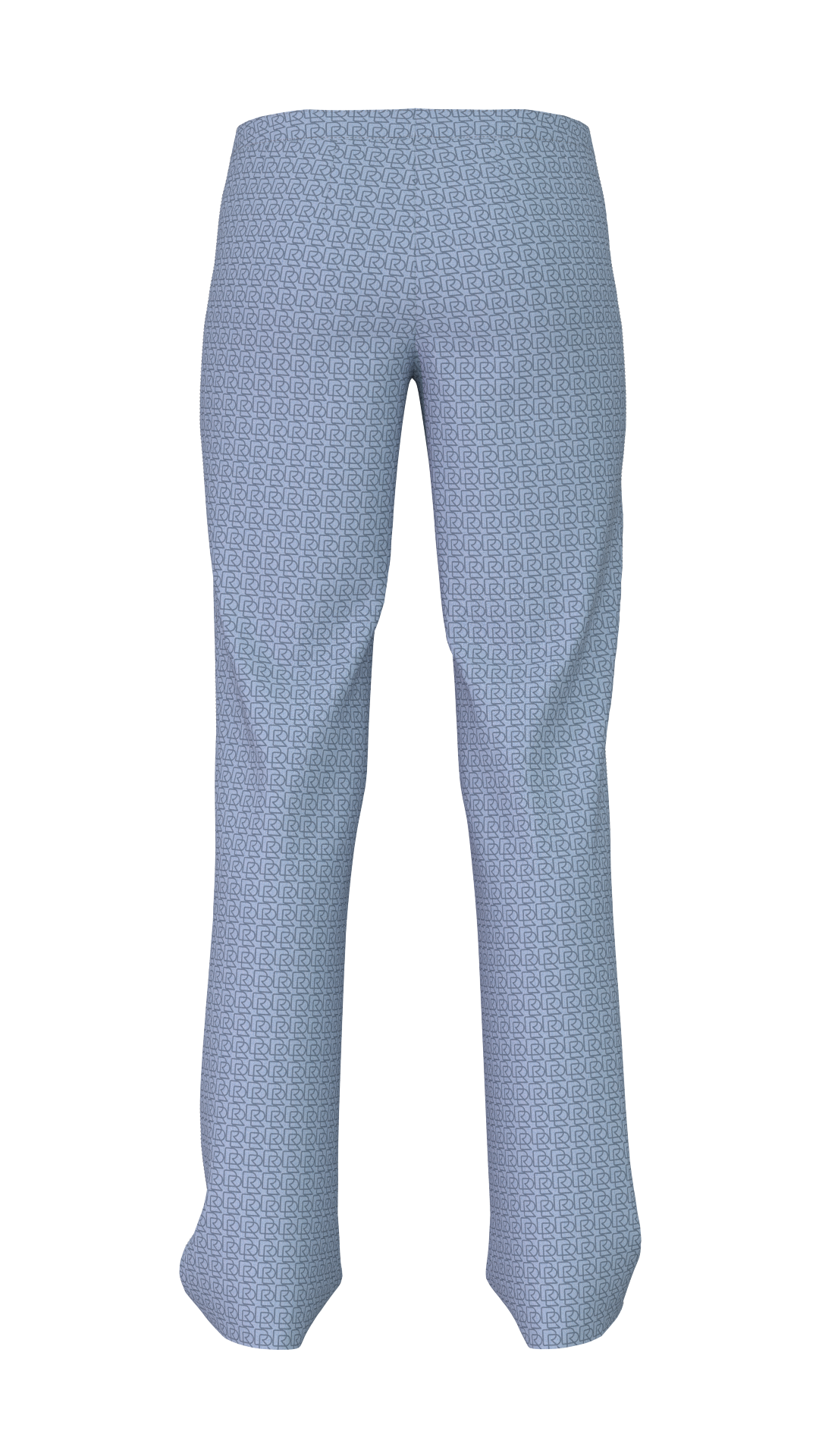

• A rendered FRONT VIEW or BACK VIEW of a single garment with no mannequin visible (like a ghost mannequin image) is what we will use for the 2D Garment. For detailed information on how this rendering should look like you can refer to the Garment From Mannequin Images specs.

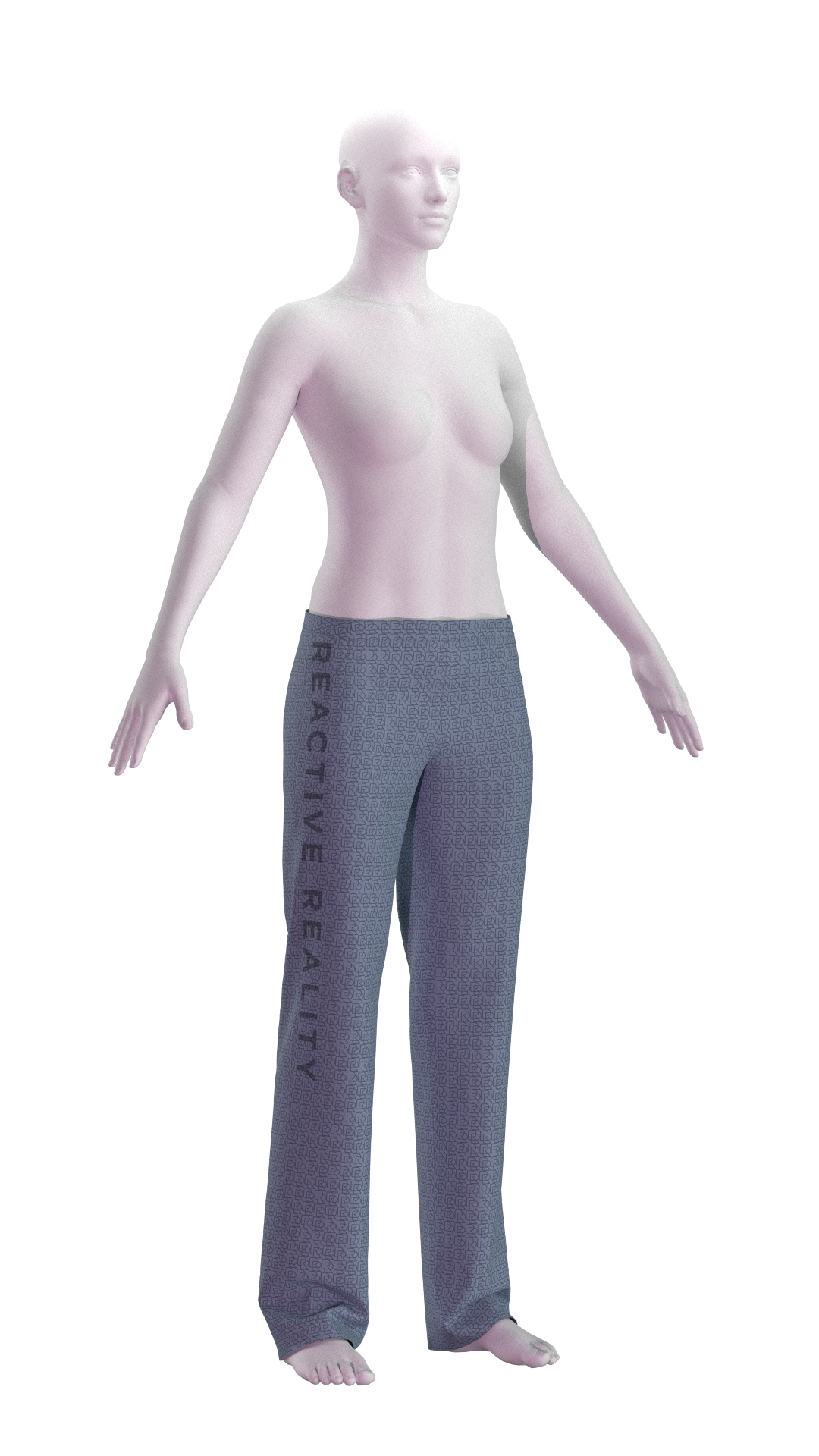

  • Garment should be fitted on a mannequin in A-pose

  • Sleeves should not cover other parts of the garment

  • Note that front view garment image are intended to work with front view avatars and vice versa (back view garment images and avatars) for a realistic result.

• Use the RR HDRi file to match the light conditions of the RR Avatars. Don’t forget to check and adapt the Light Intensity (1 for bright garments, up to 1,5 for dark garments).

• REFERENCE_ADDITIONAL: A reference image showing a mannequin wearing the garment helps us ensure the accuracy of the fitted garment (optional).

• Portrait Orientation with 1080px x 1920px measurements and zoomed in as much as possible with the whole garment visible using no background color

• Provide the rendering in .png file format

High resolution results

Our tech is capable of creating photo studio quality images that are even useable for print. The output resolution depends on the provided input data:

• The resolution of the input image should have at least the same resolution as the desired output image resolution.

• The simulation of the garment should look as realistic as possible. This means the geometrical resolution needs to be high enough (especially complex shapes).

Garment 3D Output

Input Requirements

• zprj file, containing the sound garment simulated on the RR Mannequin aiming for a PD of 15, but still looking realistic.

• Texture maps/files (Please note that the UV-Layout needs to be efficient.)

  • Diffuse map (.png)

  • Normal map (.png)

  • Displacement Map (.png)

  • Opacity Map (.png)

  • Roughness Map (.png)

  • Metalness Map (.png)

  • → in 8192px (1 tile) with a bleeding of 64px

Size Recommendation

Optional: (if size recommendation is requested)

• Grading information in a .dxf, a .rul file format or a Tech Pack

Supported Types of Garments

• Pants

• Skirts

• Shirts / T-Shirts / Tops

• Jackets / Blazer / Coats

• Sweaters / Hoodies

• Dresses

• Under Garments
